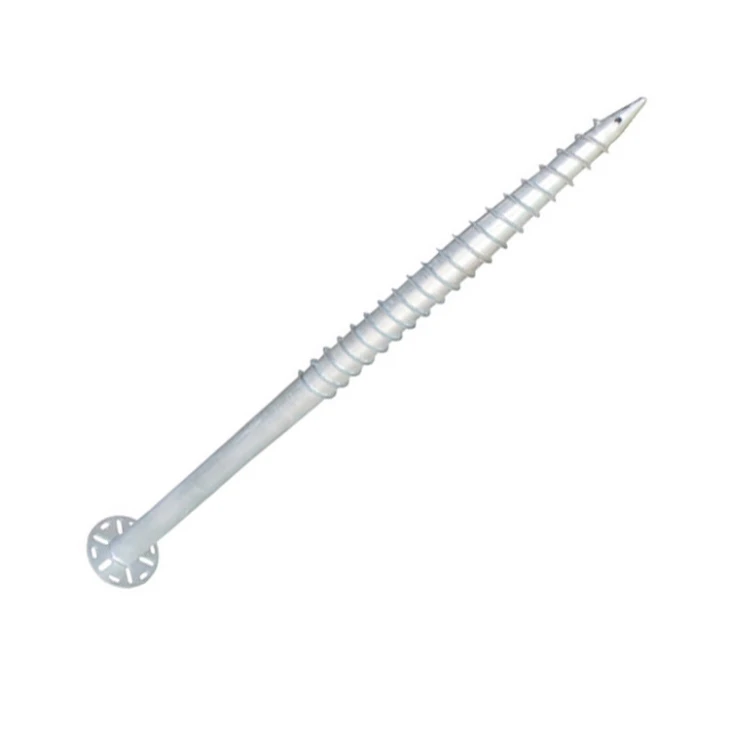

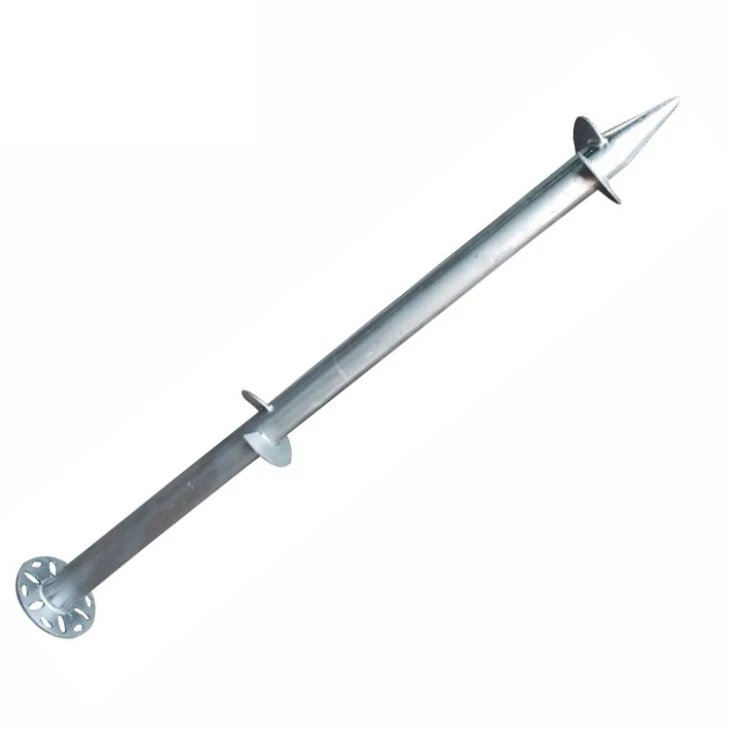

Spiral Ground Screw

Spiral Ground Screw

Production Name: Spiral ground screw
Material: Steel Q235
Surface: Hot dip galvanization 80µ
Foundation type: Open ground screw
Length : From 500mm To 2500mm, Customized
Thickness of Pipe: 2.5mm, 2.75mm, 3mm, 3.5mm, Customized
Outer Diameter: 48mm, 60mm,70mm,76mm,89mm,Customized
Spiral Size: Thick 2.0mm-6.0mm, Diameter 100mm-220mm, Customized
Thickness of Flange: 6mm - 12mm, Customized
Diameter of Flange: 120mm-250mm, Customized
Series: Flange top, U shape top
Warranty:10 years on material
Send Inquiry
Chat Now
Description

Description of Spiral Ground Screw

Our spiral ground screw is dry method not using concrete, it is possible to work on the soft ground without excavating work, so to reduce cost.

 Parameter of Ground Screw.png

Related Products of Spiral Ground Screw

 Related Products of Spiral Ground Screw.jpg

Galvanized Surface of Spiral Ground Screw

 Galvanized Surface of Spiral Ground Screw.jpg

Packing Overview of Spiral Ground Screw

 Packing Overview of Spiral Ground Screw.jpg

Application of Spiral Ground Screw

1) Timber Construction
2) Solar Power Systems / Solar Farm Construction
3) City and Parks
4) Fencing Systems
5) Road and Traffic
6) Sheds and Containers
7) Flag Poles and Marks
8) Garden and Leisure
9) Boards and Banners
10) Event Structures
