Solar Panel Roof Mount Hardware
Material：Aluminum 6005-T5; stainless steel SUS304
Max. wind load: 45m/s
Max. snow load: 1.5kn/㎡
Tilt angle: Customized from 5° to 60°
Warranty: 10 years on material
Application: Solar panel roof mount
Description of Solar Panel Roof Mount Hardware
Bristar offers standard solar panel roof mount hardware for PV module rooftop systems and we also make produce the solar panel roof mount hardware according to customer’s design.
Components of Solar Panel Roof Mount Hardware
L feet – L feet are used to support the solar mounting brackets to sheet metal roofs.
Metal roof clamps – The metal roof clamps are used to secure the solar mounting structures to sheet metal roof too.
Tile roof hook – The solar tile roof hooks used to fix the rails to rooftop
Adjustable end clamp – used to secure PV modules of varying thicknesses.
Fixed end clamps – Used to fix PV modules to rails in a fixed thickness.
Mid clamp -- Used to fix the PV modules to rails in middle part.
Rail – Made of extruded aluminum 6005-T5, are used to hold each row of panels.
Rail spice – Used to connect rails to any length.
Cable clips – Used to the structure of the PV modules or to the rail to hold cable.

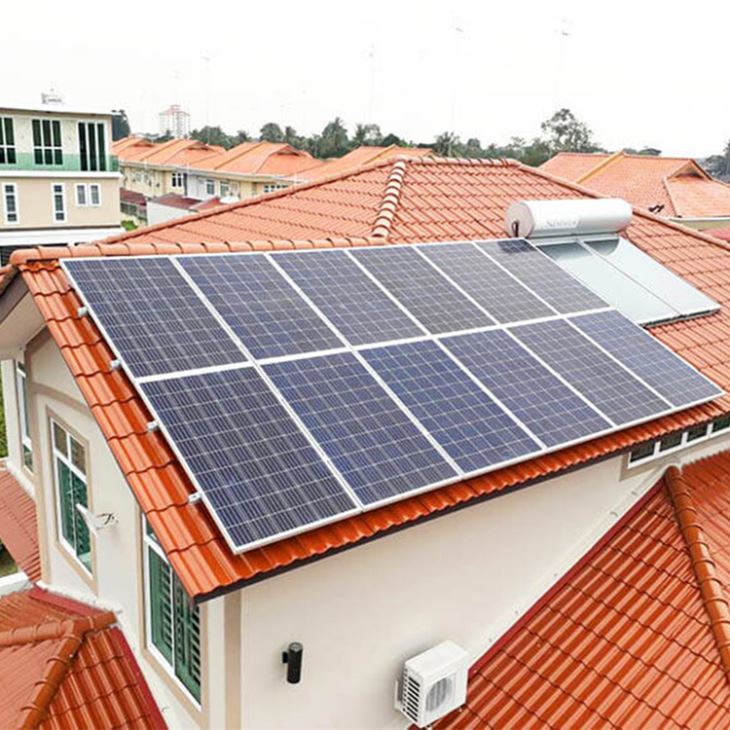

Picture Overview of Solar Panel Roof Mount Hardware
