Description

Products Description

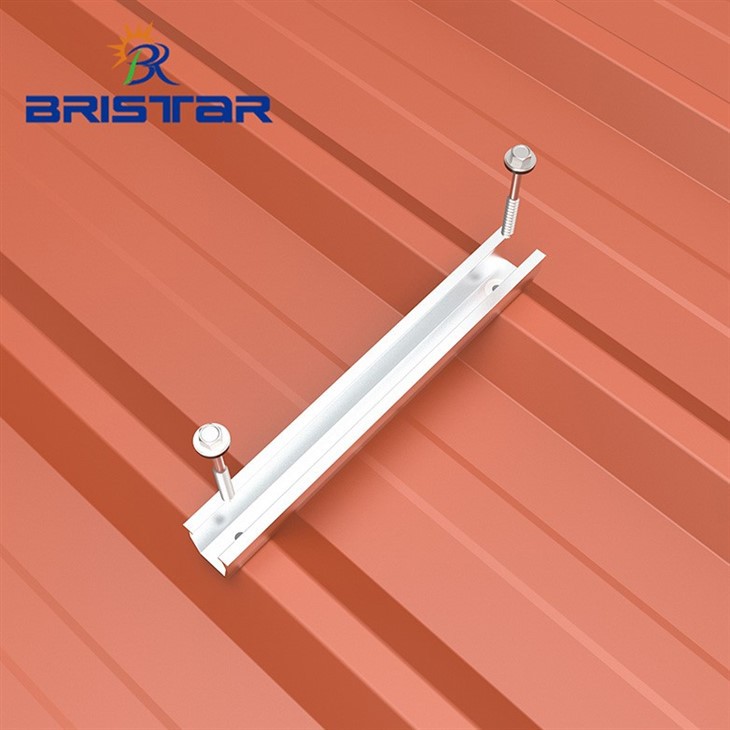

The aluminum U-type mini rail is fixed to the surface with screws and the photovoltaic modules are fixed to it with module clamps. It is universally adjustable and therefore suitable for all module sizes.

Products Parameter

Production Name	Aluminum U-type mini rail
Place Of Origin	Xiamen, China
Material	Aluminum 6005-T5
Length	150mm, or 200mm
Packing	Aluminum Rail Splice In pallet, carton box or as your request
Warranty	10 years
Payment	T/T, L/C, D/P,Western Union

Products Specification

How to install:
1. Roof layout depends on module size.
2. Align the first row with the eye-catching line.
3. Install the rail bracket, pre-drill the holes with a 5.00 mm diameter sheet metal drill bit, and secure with 4 blind rivets.
4. Use wooden templates to place the next rows.

MG11541

Our Advantage

Simple but firm design.
Compatible with most framed and frameless solar panels.
Pre-assembled before shipment, saving installation time and cost.

aluminum solar panel rails

FAQ

Q: What is solar rail made of?

A: The majority of systems are made of aluminum with stainless steel hardware and are designed to accept a variety of solar modules on a variety of roof types.
