HDPE Ballast Flat Solar Roof Mount

Material: PP
Color: Black
Applicable: Solar panel mounting system
Place of Origin: China, Fujian
Module tilt:15°

Send Inquiry

Chat Now

Description

Products Description

The HDPE Ballast Flat Solar Roof Mount is a highly efficient and reliable solar roof mounting system with extreme stability and excellent wind resistance. It is made of high-density polyethylene material, which is not only durable but also very easy and convenient to install and maintain.The system is designed for flat mounting to better accommodate a variety of roof types, providing users with more flexible options.

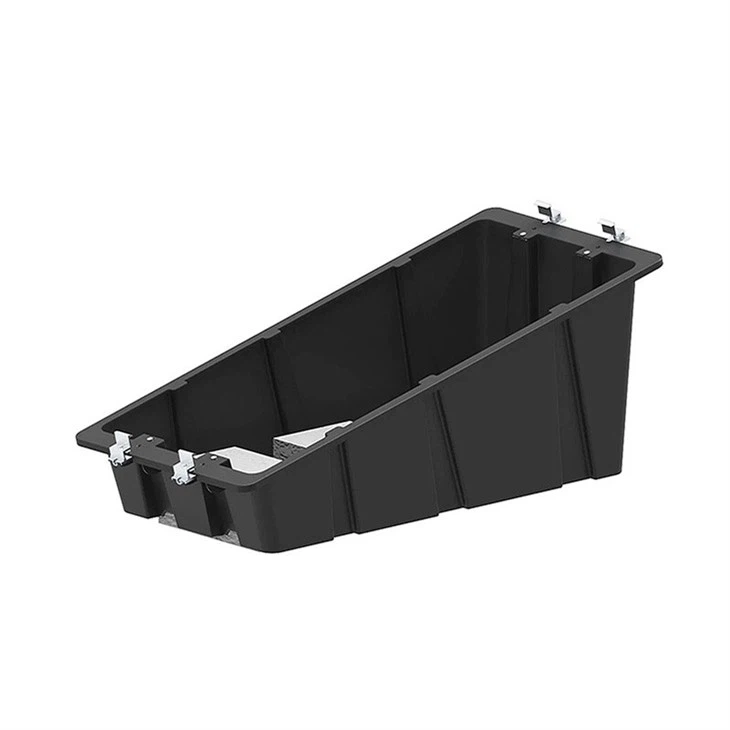

Roof Black Mounting Kit

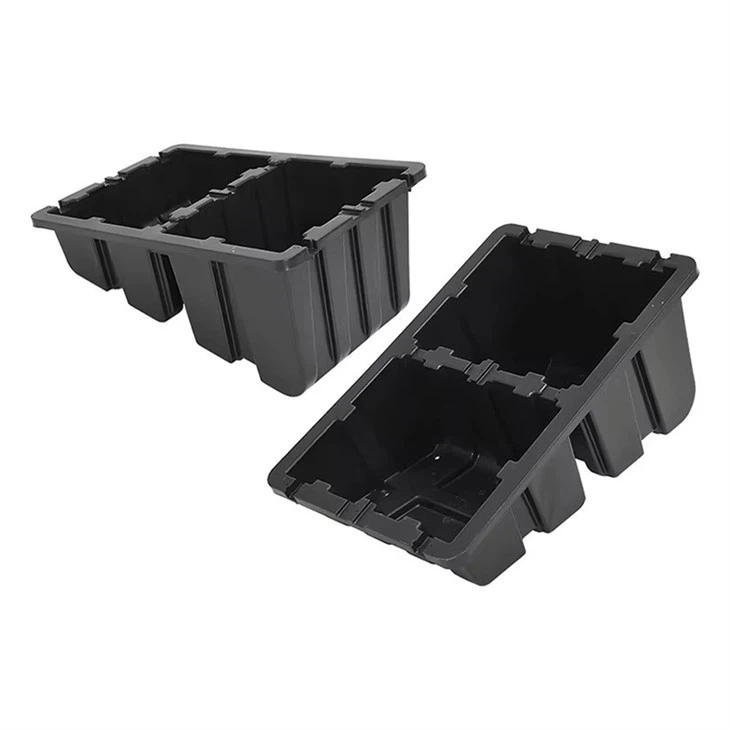

Flat Roof Plastic bracket for solar panel

How to install HDPE Ballast Flat Solar Roof Mount?

Take out 2 pcs rails and use 4 pcs M6*25mm self-tapping screws to fix the rails on the bracket edge bottom.
Then take out 2 pcs rails and use 4 pcs M6*25mm self-tapping screws to fix the rails on the upper edge of the bracket; then place the filler ( Bricks, stones, not less than 70kgs).
Adjust the position of the bracket according to the length of the solar panel, take out the end clamp, install the M6*28mm round head screws on the end clamp, put the side pressure on the rail, do not lock it, and put the solar panels after confirming the position of the solar panel, tighten the end clamp screws to fix it.
