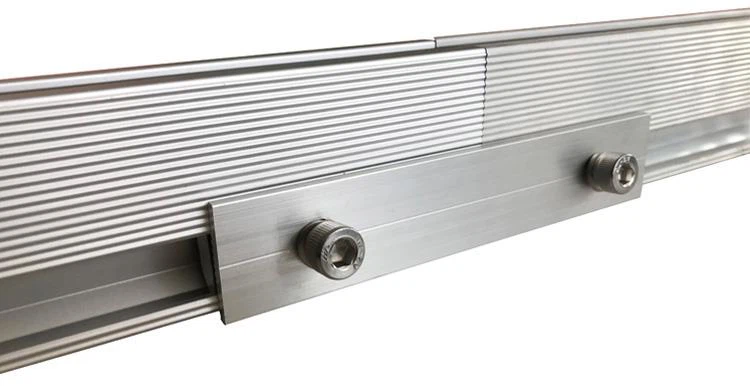

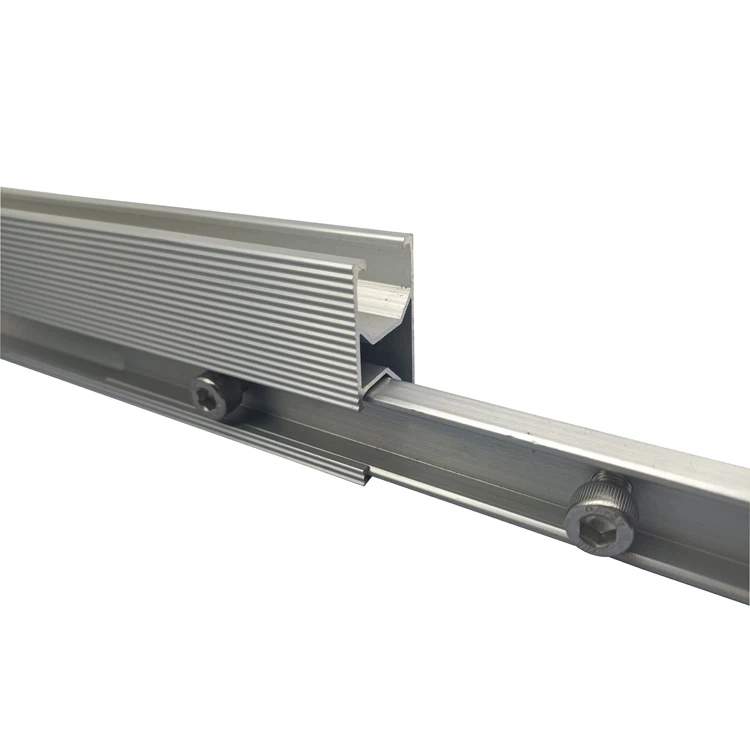

Solar panel mounts Rail Splice Rail Connector

Use these for long rows of rail, simply join lengths of rail using the rail splice kits. Rails can be cut to length with a hacksaw or grinder.

1. Easy to install. The tilt-in module can be put into the extruded rail from any location and can be high pre-assembly with the clamp and roof hook to minimize the time and cost of installation

2. Offer unmatched durability: with all structural components comprised of high-class stainless steel and anodized aluminum alloy, it is designed for twenty years of service life and backed by ten years warranty.
3. Stand up to extreme weather. The Bristar Solar Rail is designed to stand up to extreme weather complied with the AS/NZ 1170 and other international structure load standard by skilled engineers. The main support components also have been tested to guarantee their structure and load-carrying capacity.

4. Provide broad installation flexibility. These systems accommodate the most commercially available framed solar panels and diverse roof types, and they can scale easily from small to large, multi-megawatt installations.

Model Name	Rail Connector
Material	Al6005-T5,T6
Surface Treatment	Anodized
Colour	Silver
Max Wind Load:	60m/s
Snow Load	1.4KN/m2
Warranty	10 years
Service Life	25 years
Inclusions	M8*25 inside hexagon bolt, Flange nut
