Solar Panel Rails For PV System

solar panel rails for PV system

A universal and code compliant mounting system for attaching solar panels to the roof of your property. Designed to be used with either tiled or tin roofs, with any slope from 0-60 degrees (either flat or pitched).

Features

1) Easy to install. The tilt-in module can be put into the extruded rail from the any location and can be high pre-assembly with the clamp and roof hook to minimize the time and cost of installation

2) Offer unmatched durability. With all structural components comprised of high class stainless steel and anodized aluminum alloy, it is designed for twenty years service life and backed by ten years warranty.

3) Stand up to extreme weather. The pitched roof racking system is designed to stand up to the extreme weather complied with the AS/NZ 1170 and other international structure load standard by the skilled engineer. The main support components also have been test to guaranty its structure and load-carrying capacity.

4) Provide broad installation flexibility. These systems accommodate most commercially available framed solar panels and diverse roof types, and they can scale easily from small to large, multi-megawatt installations.

solar panel rails for PV system

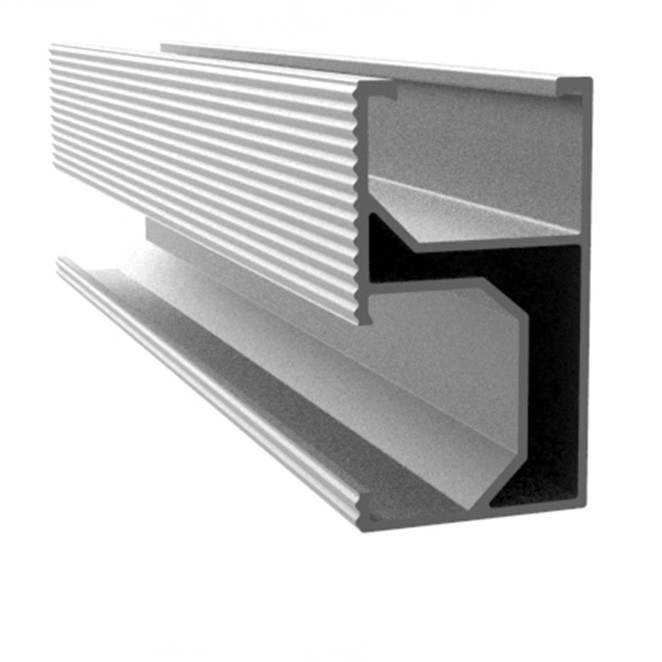

The mounting system is based around long lengths of aluminium rail that employ a number of recessed channels to allow mounting hardware to slide along for placement in the most convenient spot. As such, it becomes easy to line up the mounting feet to rafters or battens of any distance apart.

Once a bottom and top rail have been installed the panels are fixated to the rails with mid and end clamps which slide along to the appropriate location. This method prevents the need to drill or work on the panel framework at all, reducing the risk of damage to the panels.

We have Many available rail systems. Please contact us for more details.
