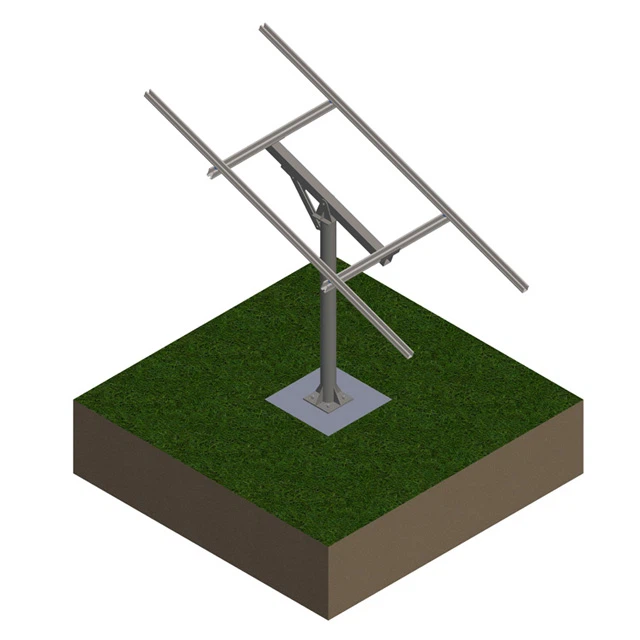

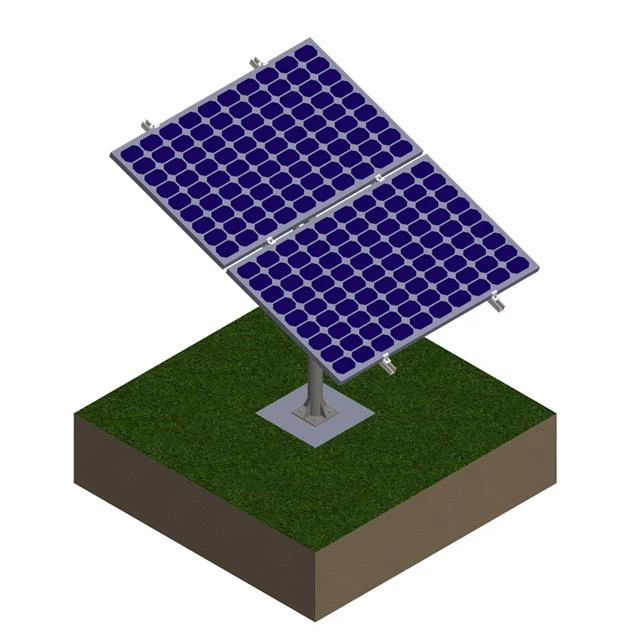

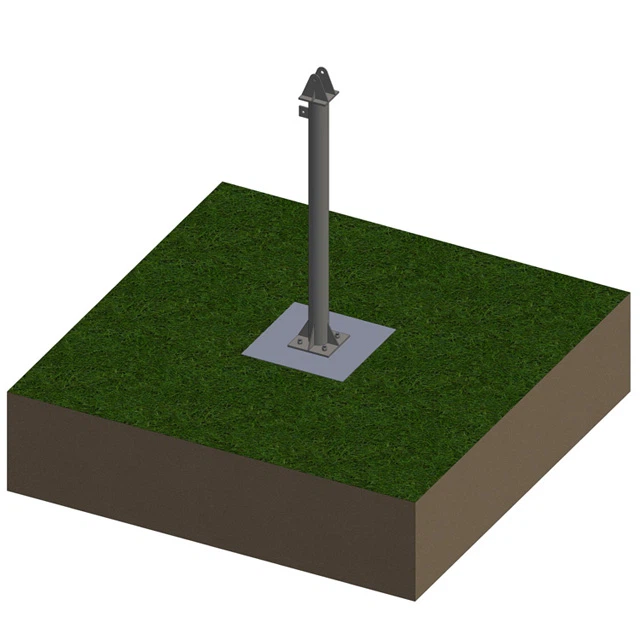

Pole Mounted PV Array

Product name: Pole Mounted PV Array
Material: Hot dip galvanized steel,aluminum 6005-T5
Wind load: Up to 60m/s
Snow load:Up to 1.5kn/㎡
Foundation type: Concrete base or ground screw
Tilt angle: Customized from 5° to 60°
Adjustable angle:0°, 10°,20°,30° and 40°
Warranty:10 years on material
Application: Solar panel pole mount

Chat Now

Product Details

Description of Pole Mounted PV Array

For how solar array mount, we generally recommend design of pole mounted PV array. This design is called pole top mount too. It is easy to install, you can finish the solar panel mount by yourself with simple tools.

Parameter of Pole Mounted PV Array

Material

Hot dip galvanized steelaluminum 6005-T5

Wind load

Up to 60m/s

Snow load

Up to 1.5kn/

Foundation type

Concrete base or ground screw

Tilt angle

Customized from 5° to 45°

Adjustable angle

0°, 10°,20°,30° and 40°

Warranty

10 years on material

Installation Guide of Pole Mounted PV Array

Installation Guide of Pole Mounted PV Array.jpg

Product Overview of Pole Mounted PV Array

 Product Show of Pole Mounted PV Array.jpg

Packing & Shipping of Pole Mounted PV Array

Packing detail

Carton box, wooden box or metal pallet as per customized.

Delivery time

15-20 days after receiving deposit

FAQ of Pole Mounted PV Array

What information do I need to give you to get exact price?
A: For the detailed solution and quotation, we need some more details as below:
1. Panel Qty and dimension (length * width * thickness )
2. Panel tilt angle?
3. Max. wind load? And snow load?
4. Lowest distance between panel and ground?
5. Any plan of layout? If not, you can offer one units as example for us to offer solution and quotation, or how about the ground size (length * width ) then we will do the layout to you
.
