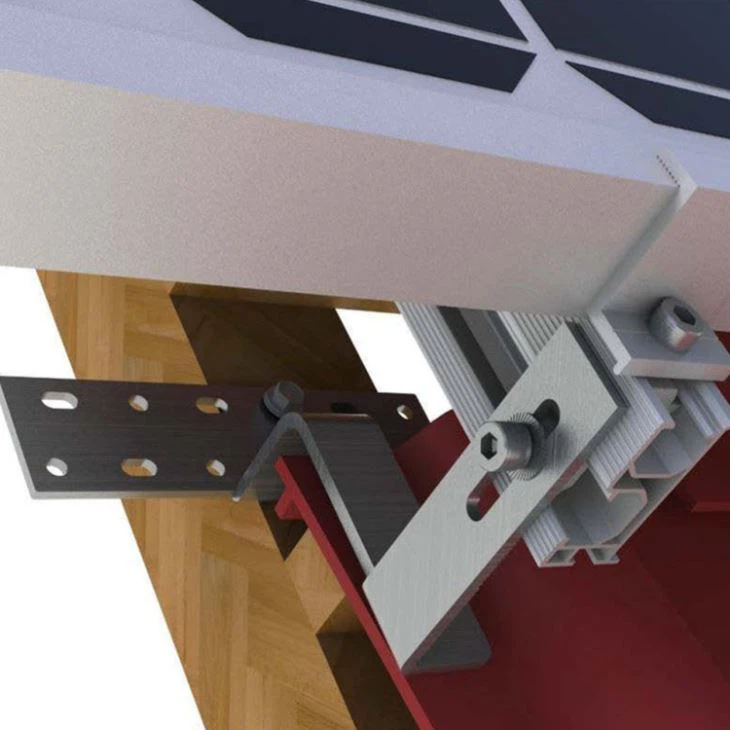

Solar Panel Structure Drawing

Description of Solar Panel Mounting Hardware Tile Roof Solar panel mounting hardware for tile roof is designed with great flexibility both for commercial and residential roof solar system. It is suitable for installing framed and frameless modules to the tile roof. It can use extruded aluminum...

Chat Now

Product Details

Description of Solar Panel Mounting Hardware Tile Roof

Solar panel mounting hardware for tile roof is designed with great flexibility both for commercial and residential roof solar system. It is suitable for installing framed and frameless modules to the tile roof. It can use extruded aluminum rails, pre-assembled clamps and varied roof hooks or brackets with tilt-in modules ensure easy and quick installation.



Parameter of Solar Panel Mounting Hardware Tile Roof

Installation site

Tile roof

Main material

Aluminum 6005-T5, SUS 304

Color

Natural silver

Wind load

Up to 45m/s

Snow load

Up to 1.5kn/㎡

Standard

AS/NZS 1170; TUV

Tilt angle

Parallel to the roof

Warranty

10 years on material and 20 years on service

Packing

In pallet, carton box or as your request

Payment terms

TT, LC at sight

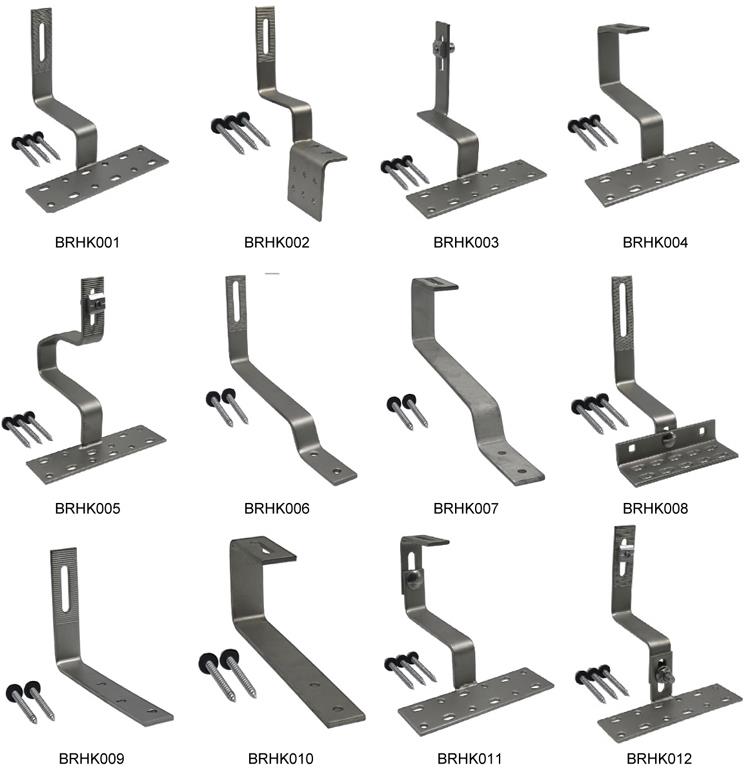

Hooks for Solar Panel Mounting Hardware Tile Roof

Solar Panel Mounting Hardware Tile Roof.jpg


Overview Mounting Drawing of Solar Panel Mounting Hardware Tile Roof

Solar Panel Mounting Hardware Tile Roof.jpg


FAQ of Solar Panel Mounting Hardware Tile Roof

Q1. What is your terms of packing?

A: Little components packing in export carton box, rail etc packing by steel or wooden pallet.

Q2. What is your delivery port?

A: Our factory is located in sea port city of Xiamen, China, it is also our delivery port.

Q3. What is your delivery time?

A: We can finish products 10-15 days after getting deposit. For small order of regular products, we can send out within one week.

Q4. Do you offer CO documents?

A: Yes, we can offer Certificate of Origin as your request.
