General Overview
The Bristar Solar tile roof mounting system is designed as a modular unit assembly system with quality materials. Which enables an installer to install any module in almost any mounting situation or configuration. The components are easy to install and used for a variety of tile roof types.
Features
⊙ Easily adaptable to most tile roof types: Pan tile roof, Cement/Flat tile roof, Asphalt Shingles
⊙ Supports high wind and snow loads
⊙ Pre-assembled components designed for fast and easy installation
⊙ Available to match all kinds of solar panels
⊙ Available in portrait and landscape mounting solution
Advantages
⊙ Flexible system suitable for most pitched roof designs.
⊙Fixed Chiko hooks or adjustable Chiko hooks for all type of tiles.
⊙Complete range of stainless steel hooks and aluminum profiles.
⊙Compatible with all Chiko profiles.
Product Applications

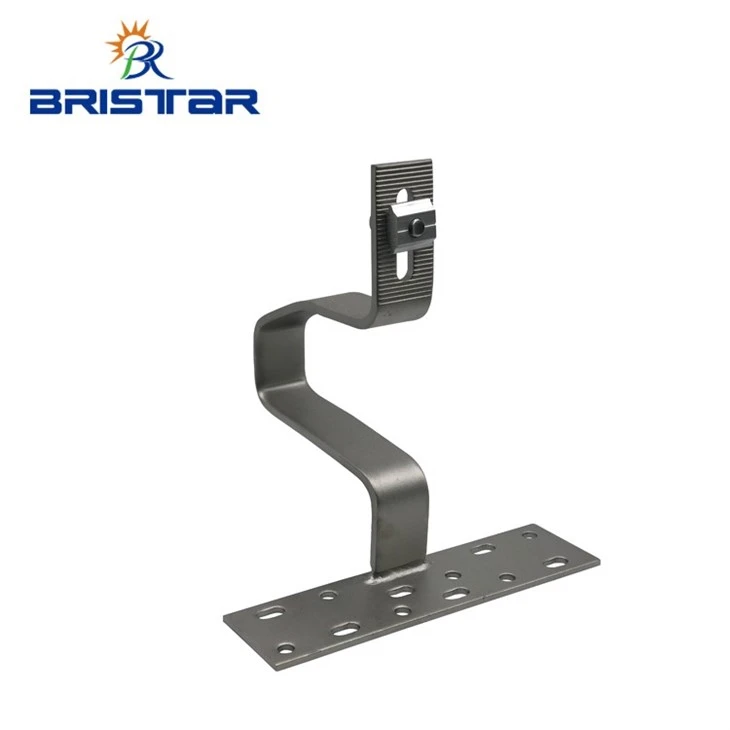

tile hook solar mounting pv hook
Installation Guide :
Step1: Install the hooks
Step 2: Connect Rail to Tile Hook using flange Nut, tie to secure.
Step 3: Install Rail Splice Kit on every connection between to sections of rails.
Step 4: Insert the Mid clamp.
Step 5: Insert the End Clamp.
Step 6: Complete Installation.
Product Details
