Description of Solar Panel Adjustable Mounting Brackets

Solar panel adjustable mounting brackets system use adjustable tripod and legs which can be adjusted to a certain angle such as 15-30 degree for customer’s requirements to get the most sunlight. This mounting system uses a stable triangle structure and legs sets to joint rail and clamp to mount the solar panels. The extruded aluminum rail, tilt-in module, clamp kit and adjustable legs are highly assembled and to save time, cost-efficient to install.


Specification of Solar Panel Adjustable Mounting Brackets

Max wind speed: 55m/s

Snow Load: Up to 1.4KN/M²

Material: Anodized aluminum 6005-T5

Warranty: 10 years and 25 years service life



Related Products of Solar Panel Adjustable Mounting Brackets

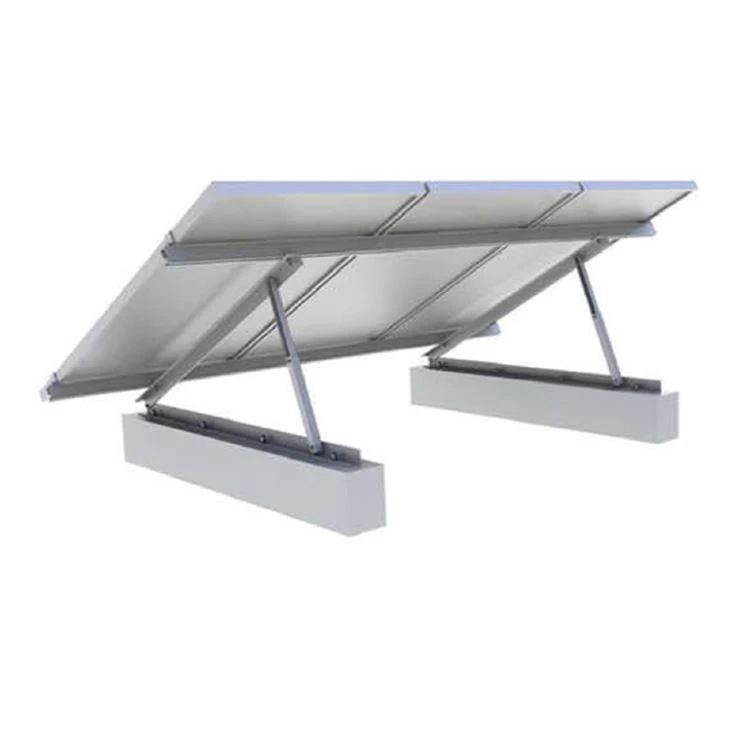

Solar Panel Adjustable Mounting Brackets.jpg


Packing & Shipping of Solar Panel Adjustable Mounting Brackets t

Packing detail

Carton box, wooden or metal pallet

Delivery time

15-20 days after receiving deposit



Benefit of Solar Panel Adjustable Mounting Brackets

● Easy to install. The tilt-in module can be put into the extruded rail from all kinds of location, ­from residential and large commercial, right through to utility scale and can be high pre-assembly with the clamp to minimize the time and cost of installation.

● Durability: The material of components is aluminum 6005-T5, except for the nuts is made of stainless steel the connection between the rails is a reliable splice bar, which make the hole structure firmer.

● Good compatibility: Design as a universal mounting system, our mounting system is compatible with most of the major PV modules on the market.

● High quality: Strict quality control cover the entire process from material selection and manufacturing to pre-construction ensures optimum life of our mounting system.
