Solar PV Flat Roof Mounting Systems

Description of Solar Pv Flat Roof Mounting Systems Ballast mounting solution for solar pv flat roof mounting systems is suitable for almost any flat roof. Without any damage on roof, adopts foldable tripod to save cost both on installation and transportation. It is a modular structure, which can...

Chat Now

Product Details

Description of Solar Pv Flat Roof Mounting Systems

Ballast mounting solution for solar pv flat roof mounting systems is suitable for almost any flat roof. Without any damage on roof, adopts foldable tripod to save cost both on installation and transportation. It is a modular structure, which can be expanded from one module to any scale while maximizing the roof usage. Our professional engineers will propose the size and weight of ballast for the project you are involved in.


Specification of Solar Pv Flat Roof Mounting Systems

Mount type

Solar panel roof mounting with ballast

Applicable   site

Concrete base flat roof

Applicable   module

Framed panel

Max. wind load

45m/s

Max. snow load

1.5kn/㎡

Material

Aluminum alloy and stainless steel 304, carbon steel

Components   parts

Mid clamp, end clamp, triangle bracket, triangle fixing components, ballasted support bracket.

Advantage

Cost saving, safety and reliability, 10 years warranty on material, 25 years service life.

Our service

OEM; Professional customization

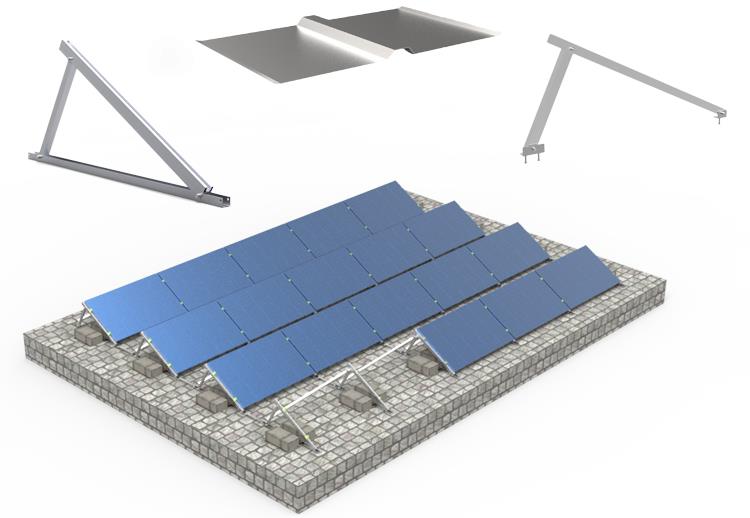

Solution Overview with Components for Solar Pv Flat Roof Mounting Systems

Solar Pv Flat Roof Mounting Systems.jpg


Project Picture of Solar Pv Flat Roof Mounting Systems

Solar Pv Flat Roof Mounting Systems.jpg


Packing & Shipping of Solar Pv Flat Roof Mounting Systems

Packing detail

Carton box, wooden or metal pallet

Delivery time

15-20 days after receiving deposit



Necessary information for us to design and quote

1. What is your Solar panels dimension?

_____mm Length x_____mm Width x____mm Thickness

2. How many panels are you going to mount? _______Nos.

3. Do you have any special requirement on flat roof clearance? ______mm from rooftop.

4. Could you pls. kindly advise the tilt angle you would like? ________degree

5. What is your planned solar assmebly block? ________Nos. in a row, total ___rows

6. What is wind speed and snow load in your site?___m/s anit-wind speed and____KN/m2 snow load.
