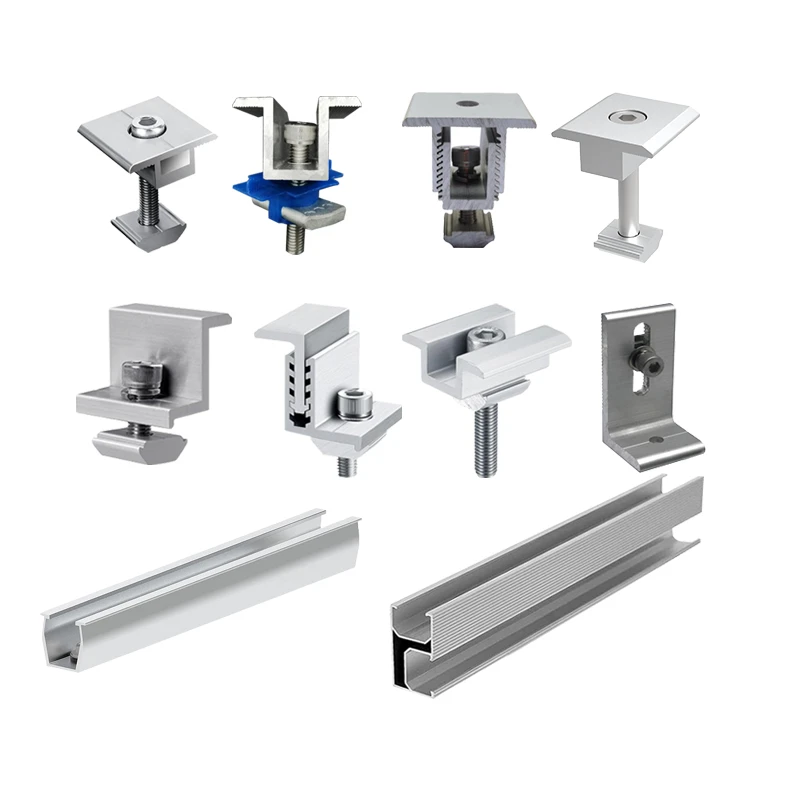

Custom solar panel clamps serve as critical mechanical fastening components within photovoltaic mounting arrays, engineered to secure framed and unframed solar modules onto diverse structural rails. Manufactured by Xiamen Bristar Technology Co.,Ltd, these custom solar mid clamps and OEM solar end clamps provide robust structural integrity for utility-scale solar farms, commercial rooftops, and distributed residential installations. Our engineering team delivers comprehensive OEM and ODM support, featuring in-house mold development, advanced 3D CAD structural design, and custom laser logo marking to meet precise project specifications. Constructed from extruded aluminum solar mounting clamp profiles, each fixing bracket integrates seamlessly with standard solar rails to guarantee long-term alignment stability under severe environmental stresses.
Technical Specifications & Materials
| Technical Parameter | Specification Standard |
| Size Range | Compatible with 30mm, 35mm, 40mm module depths; custom lengths 40/50/60/80mm |
| Material Composition | Extruded AL6005-T5 Aluminum Alloy; Fasteners in SUS304 Stainless Steel |
| Surface Treatment | Anodized Film Thickness ≥ 10μm |
| Wind Load Capacity | Up to 60 m/s maximum wind velocity |
| Snow Load Capacity | Up to 1.4 kN/m² surface snow load |
| Applicable Standards | AS/NZS 1170.2, ISO9001, CE Certified |
| Design Life & Warranty | 25-year operational service life with a 10-year factory warranty |
Quality Control & Testing Standards
We maintain an independent quality assurance department dedicated to verifying every batch of aluminum solar mounting clamps prior to warehouse storage. All finished brackets undergo stringent factory self-inspection protocols covering dimensional measurement accuracy, mechanical load-bearing resistance, and assembly tolerance compatibility. Non-conforming items are immediately isolated and quarantined under strict rework procedures to prevent defective components from entering the supply chain. Independent third-party testing reports and CE compliance documentation are fully available to validate structural performance for international engineering bids.
Typical Application Scenarios
Our solar fixing bracket clamps are deployed globally across commercial rooftop PV plants, industrial trapezoidal metal roof solar arrays, and ground-mounted utility-scale solar farms. Long-term international partners routinely conduct annual facility audits at our Xiamen production base, reflecting deep supply chain trust and consistent multi-year component reordering cycles.
Our Core Advantages
As an integrated industry and trade manufacturer, we operate our own solar mounting production base with zero intermediary markups, supplying wholesale purchasers with direct factory pricing. Clients benefit from complete supply chain transparency, where raw material extrusion, precision machining, surface anodizing, and export packaging occur under one roof to protect project budgets and delivery timelines.
FAQ
Q: How do these aluminum solar panel clamps maintain structural safety under 60m/s extreme wind loads?
A: Fabricated from high-tensile AL6005-T5 alloy with a hardness rating of ≥ 12 HW, the clamps utilize precision-machined interlocking teeth and SUS304 fasteners to resist uplift forces in compliance with AS/NZS 1170.2 standards.
Q: What packaging protocols are implemented to prevent surface scratching and moisture damage during ocean freight?
A: Clamps are layered with protective foam interleaves, packed in reinforced corrugated cartons, and secured onto fumigation-free wooden pallets wrapped in waterproof stretch film to ensure damage-free transit.
Q: Are these custom solar mid clamps and end clamps compatible with 182mm and 210mm ultra-large photovoltaic modules?
A: Yes, the adjustable profile matrix accommodates module depths ranging from 30mm to 40mm and offers customizable lengths of 40mm to 80mm to match varied rail geometries for high-wattage panels.
