Product Description

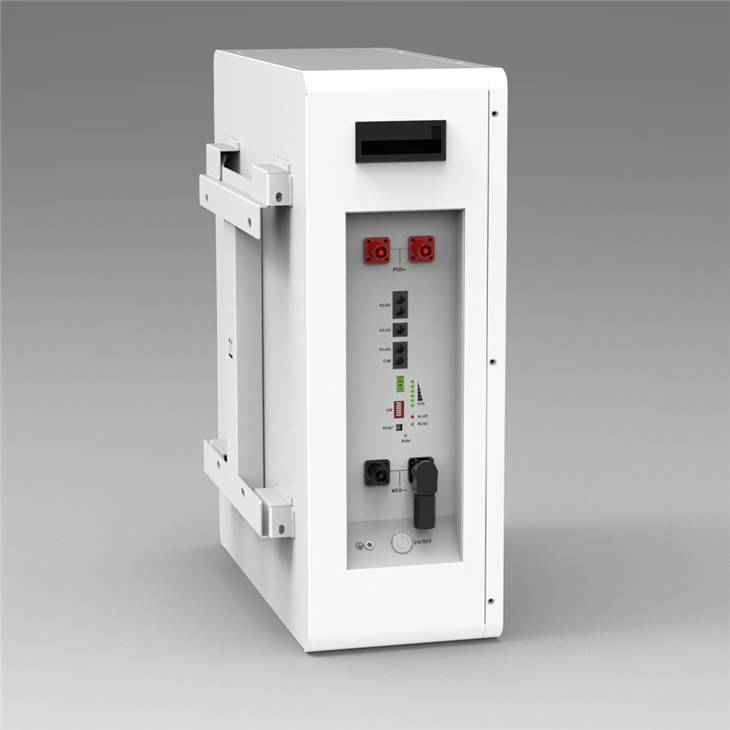

BR-51100 10KWh LifePO4 storage battery
LifePO4 storage battery with long cycle life(≥6000@25°C,80%D0D). Can be recharged and discharged thousands of times without losing their capacity or performance. We have 5KWh, 10KWh, 15KWh optional.

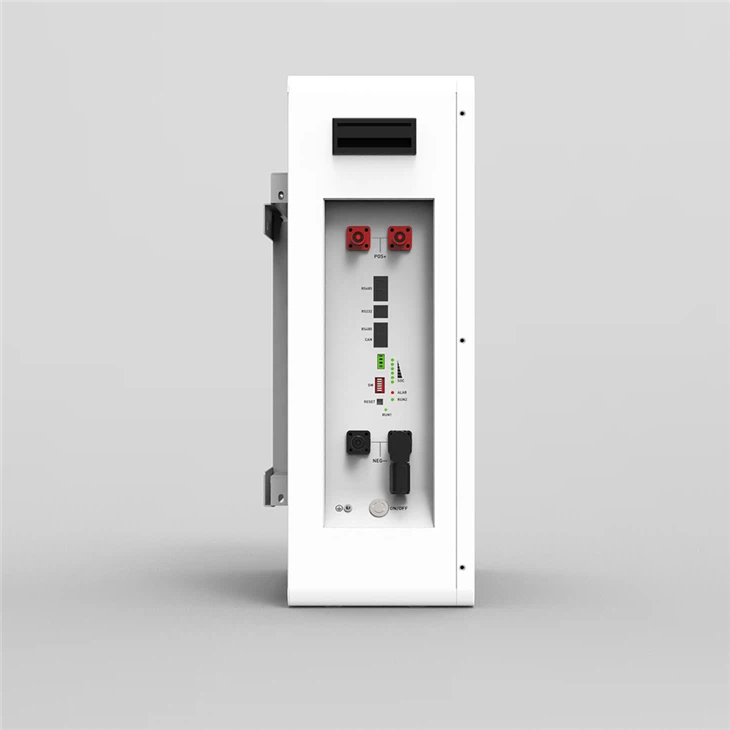

BR-51200&51300 solar storage battery
Storage battery allows individuals and businesses to save money by reducing their reliance on grid electricity. Keep your appliances running seamlessly by charging them with the solar energy you generate. Home lithium-ion batteries store solar energy for use when the sun is not shining, reducing your reliance on the grid.
Home solar battery storage lifepo4
By connecting with panels and inverters, a complete home power storage system is formed. Reduce dependence on mains power and save costs. Application of household,farm,villas, and Nomadic area.
Products Parameter
Home storage battery system
| Model |
BR-51100
|
BR-51200
|
BR-51300
|
| products |
 |
 |
 |
|
Usable Capacity
|
5.12kWh
|
10.24kWh
|
15.36kWh
|
|
Nominal Voltage
|
nano silver lon autibacterial | 51.2V |
51.2V
|
|
Voltage Range
|
40-58.4 | 40-58.4 |
40-58.4
|
|
Recommend Charge Cut-off Voltage
|
58.4 | 58.4 |
58.4
|
|
Recommend Discharge Cut-off Voltage
|
40 | 40 |
40
|
|
MAX.Charge Current
|
100A | 150A |
150A
|
|
MAX.Discharge Current
|
100A | 150A |
150A
|
|
Recommend Charge&Discharge Current
|
≤50A | ≤100A |
≤100A
|
|
MAX.Output Power
|
5000W |
7680W
|
5000W |
|
Recommend Output Power
|
2500W |
5000W
|
4000W
|
| DOD |
≥95%
|
≥95%
|
≥95%
|
|
Modules Connection
|
1~6 in parallel | 1~6 in parallel |
1~6 in parallel
|
|
Communication
|
CAN&RS485&RS232 | CAN&RS485&RS232 |
CAN&RS485&RS232
|
|
Ingress Protection
|
IP21 | IP21 |
IP21
|
|
Cycle Life
|
≥6000@25°C,80%D0D
|
≥6000@25°C,80%D0D
|
≥6000@25°C,80%DOD
|
|
Working Temperature Range(Discharg)
|
Discharg-20°C to +60°C | Discharg-20°C to +60°C |
Discharg-20°C to +60°C
|
|
Working Temperature Range(Charge)
|
Charge+0°C to +55°C
|
Charge+0°C to +55°C
|
Charge+0°C to +55°C
|
|
N.W./KG
|
55KG/70KG
|
85KG/100KG
|
115KG/130KG
|
|
Product Dimension(MM)
|
690*425*210MM
|
600×465×260MM
|
740×470×250mm
|
|
Package Dimension(MM)
|
740×475×360MM
|
660×515×410MM
|
800×520×415MM
|
Products Advantage
Advantage of storage battery
1. High energy density: Provides more energy in a compact size in a limited space.
2. Long cycle life: can be cycled 6500 times, with long-lasting performance.
3. Enhanced safety: excellent thermal stability, reducing risks.
4. Wide range of use: reliable in any climate, indoor/outdoor use.
5. Quick charging: Quick charging and ready to use.
6. Environmentally friendly: no toxic metals, low risk of leakage.
7. High-cost performance: long service life and low maintenance cost.
8. Energy independence: Store and use electricity as needed, reducing dependence on the grid.
FAQ
- Source factory & direct sales dealer:
All batteries are 100% original Grade A and brand new.
Fresh stock every week, newly produced cells.
Maintain long-term supply for your projects. Don't worry about inventory issues.
- Quality service guarantee:
100% tested and guaranteed. Batteries will be rigorously tested before shipment. Matched voltage and IR guaranteed. Welcome QC inspection&
Online video inspection before shipment.
